Snow Flake Ice Focusun 5000kg/day Automatic Direct Cooling Ice Block Machine for Fishery

Applicable Industries : Manufacturing Plant, Construction works , Food & Beverage Shops, Other

Condition : New

Place of Origin : Jiangsu, China

Ice Shape : Snow Flake Ice

Voltage : 220v~440v

Power : 20.9kw

Dimension(L*W*H) : 4800X1000X2250(LxWxHmm)

Weight : 2860 KG

Warranty : 1 Year

Key Selling Points : High Productivity

Ice storage capacity : Other

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : PLC, Compressor, Condenser, Evaporator

Compressor brand : Refcomp

Application : Industrial, Fresh-keeping

Product name : Ice Block Making Machine

Refrigerant : R404a/R22

Ice size : customized

Control system : Simens PLC+Touch Screen

Feature : High Effective

Material : Aluminum Alloy

After-sales service1 : Remote Video Guidance

After-sales service2 : On-site Maintenance

After-sales service : On-site Installation Maintenance Services

Packaging Details : 1. Standard wooden case.
2. A complete tube ice maker contains: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine comes into use, customer only need prepare power for the machine.
4. All required compone

Port : Shanghai Port, China

Supply Ability : 100 Set/Sets per Quarter

Price : $33,998.00/units >=1 units

MOQ : 1pc

Contact Now

Product Description

Snow Flake Ice Focusun 5000kg/day Automatic Direct Cooling Ice Block Machine for Fishery

Block Ice Weight for Options

Ice Moving Device for Options

Aluminum direct refrigeration block ice machine is also called direct refrigeration block ice machine, direct fast cooling ice machine (block ice machine). The principle is to use the specially designed cooling channel of the ice making box to carry on the circulation of the low temperature refrigerant, so as to rapidly cool the water in the box and realize rapid ice making.

Adopts modular design

The large capacity direct refrigeration block ice machine is divided into machine modular, evaporator modular and outside cooling modular, convenient to transport and install.

Automatic Refrigeration Technology

Ice thawing and iced office are fully-automatic. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes.

Detailed Images

Machine Composition

Parts: evaporator,unit of refrigeration
Material: water
Capacity: 15T/day
We can produce with different capacity according to the request of customer.

Details

Machine modular: includes compressor, liquid reservoir, water cooling condenser, cooling pipe, valve, control box and so on.

Outside cooling modular: water cooling tower, air cooling condenser, evaporative condenser. They are usually placed outside.

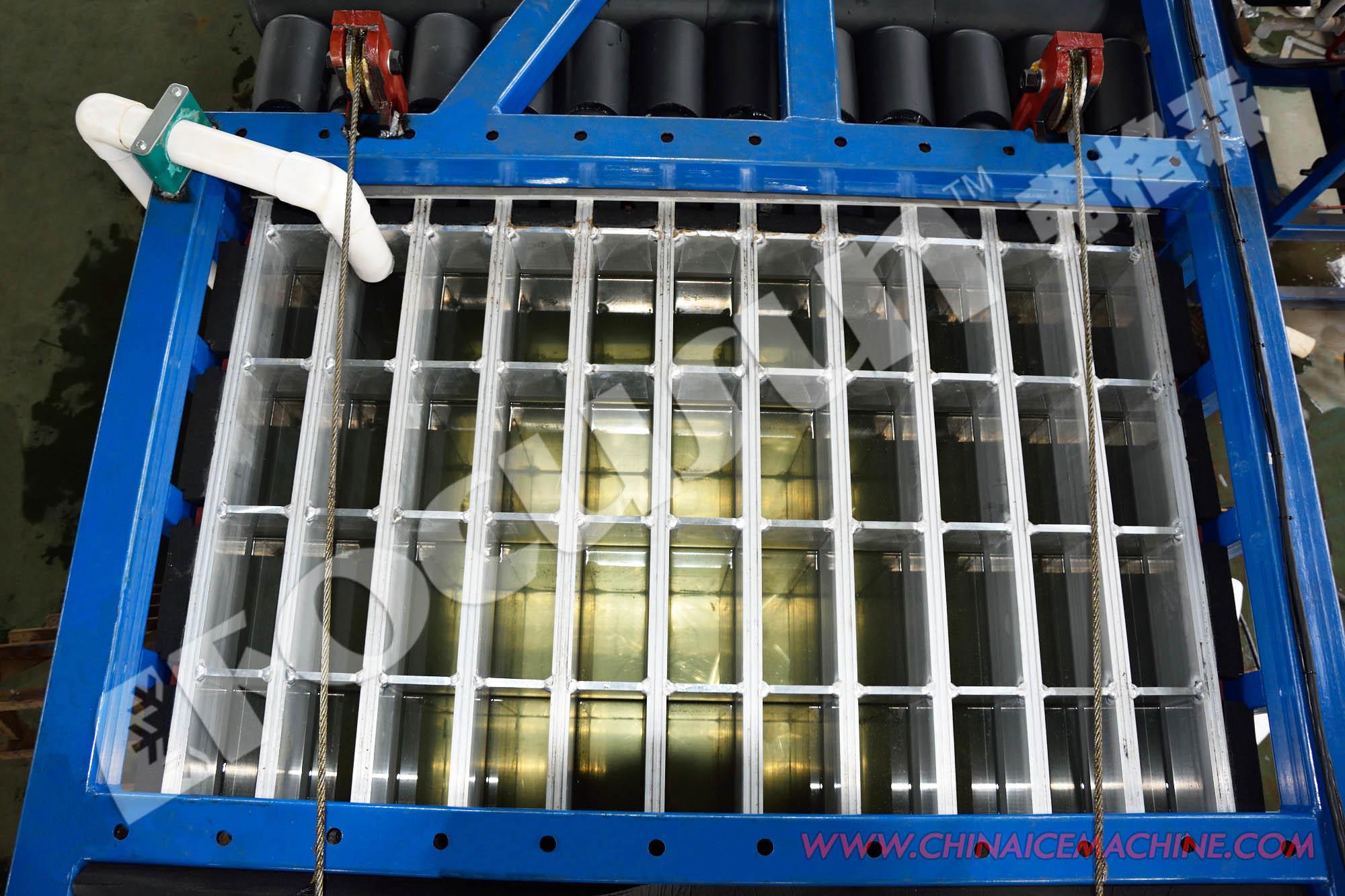

Evaporator modular: evaporator modules are divided into one or several sizes according to the size of evaporator.

Features-I

1. Adopt dense special formula aluminum alloy as evaporator, improve heat exchange effect, real rust prevention and corrosion protection, guarantee service life

2. The water contact between the water tank and the water is made of aluminium plate, and the material is not rusty

3. Thermal fluoridation. In the inlet water temperature of 20 degrees, water temperature, the ice doffing time is 23 minutes, fast and energy saving

Features-II

4. The overall modular equipment makes transportation, moving, field installation very simple

5. According to different ice size, we are tailor-made for customers for each direct refrigeration block ice machine

Smart APP- Remote control

Remote control app developed by Focusun which is an intelligent software, can turn on/ off the machine remotely, monitor working detailed information timely, has automatic alarm of maintenance and after service, provides parts working performance on line anywhere and any time.

Packing & Delivery

1.Standard 20ft or 40ft container. 2. A complete block ice maker contains: ice machine, cooling tower, water pump, water pipes and water pipe fittings. 3. Machine comes into use, customer only need prepare power for the machine. 4. All required components for installing the machine will be provided.
